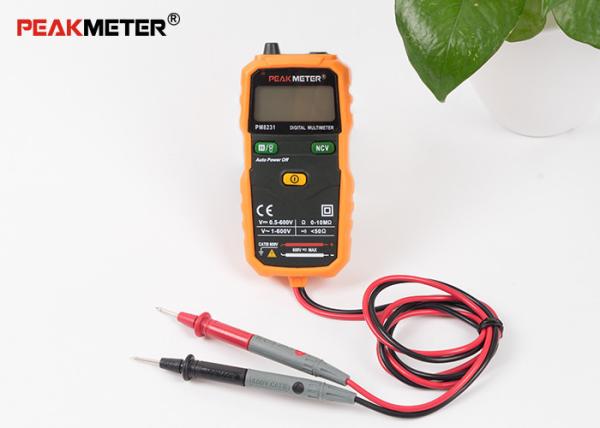

NCV Detection Handheld Digital Multimeter Auto Power Off Backlighting Function

Name: NCV Detection Handheld Digital Multimeter Auto Power Off Backlighting Function
Brand: PEAKMETER
Price: 1 USD

Brand Name : PEAKMETER

Model Number : PM8231

Certification : CE

Place of Origin : China

MOQ : 1

Price : Negotiation

Payment Terms : T/T

Supply Ability : 150,000 Pcs Per Month

Delivery Time : 5-40 work days

Packaging Details : Product Size 130mm x62mm x27mm Product Weight Approx. 130g

Display : 2000 Counts

Function 1 : Data Hold

Voltage Measurement : 2V~600V AC/DC

Function 2 : NCV test

Product Name : Handheld Digital Multimeter

Function 3 : Continuity test

Contact Now

Smart Mini Digital Multimeter With NCV Detection AND Auto Power Off

English User Manual:https://drive.google.com/open?id=1nKXFUTT1u6MLXnwoTWWoQ7wNn2fwkogB

Feature of Mini Digital Multimeter

AC/DC Voltage and Resistance Measurement
Non-contact voltage induction zone
Non-contact voltage light indicator
Non-contact Voltage Detection
NCV, Continuity test

SPECIFICATIONS	RANGE	ACCURACY
DC Voltage	2V/20V/200V	±(0.5%+3)
	600V	±(0.8%+5)
AC Voltage	2V/20V/200V/600V	±(1.0%+5)
	600V	±(1.0%+5)
Resistance(Ω)	2kΩ/20kΩ/200kΩ/2MΩ/10MΩ	±(1.0%+3)
FEATURE
Display	2000 counts
Data hold	√
Continuity	√
NCV	√
Work Light	√
GENERAL
Power Supply	2×1.5V AAA
Weight	Approx. 150g
Size	130mm×62mm×27mm
Safety Rating	EN61010-1,EN61010-2-033 EN61326,CATⅢ600V

Description of Mini Digital Multimeter

Hand-held professional Digital Multimeter to measure AC / DC Voltage, AC / DC Current, Resistance, Capacitance, Temperature, Frequency, and Duty Cycle.It has a large LCD digital display screen and Backlighting function, which makes it easy for users to read data.

The instrument is a portable digital multimeter. It has stable performance, high precision, low power consumption, novel structure. Safe and reliable, it’s an ideal measuring instrument for the majority of users.
The instrument can measure DC voltage, AC voltage, resistance and connectivity; with non-contact voltage detection function, timely remind the user to pay attention to operation safety, so it’s more safer and rest assured for user to use.
This manual includes the relevant safety information, warning notices and so on, please read the related contents carefully before using the instrument, and strictly follow all warnings and precautions.
